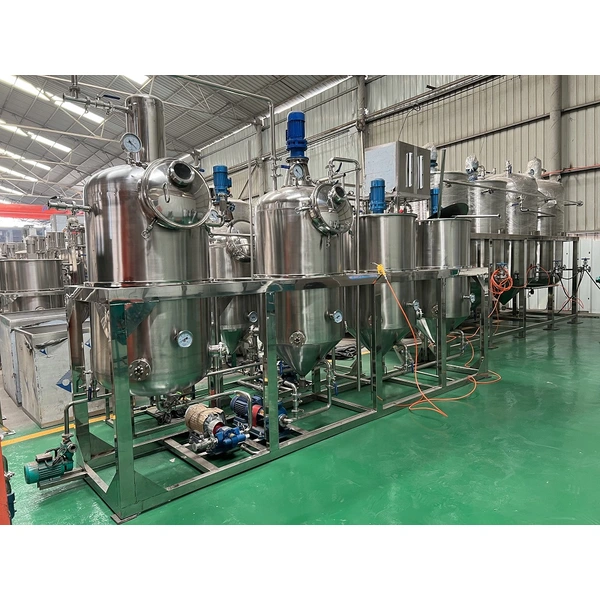

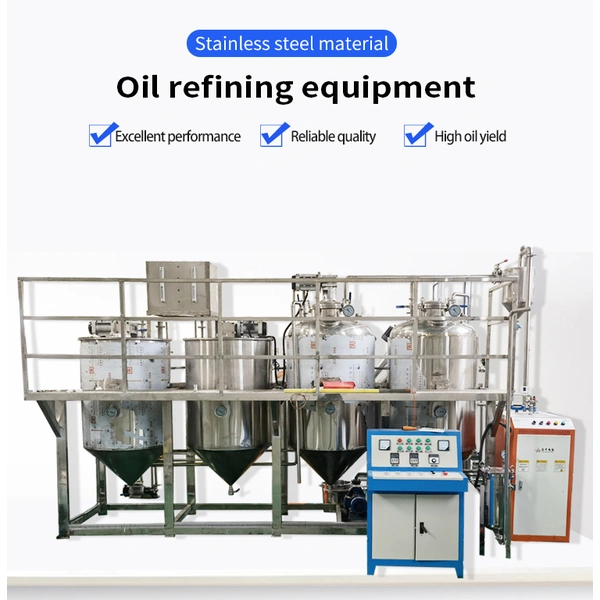

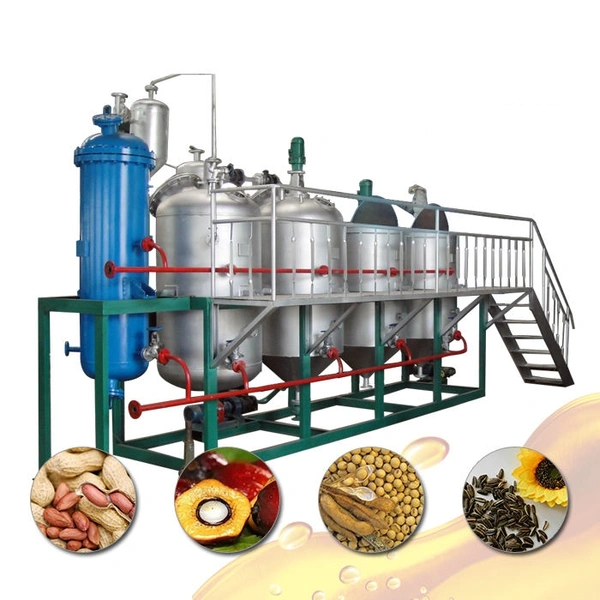

Food oil refinery machine

Degumming: Remove gums in the crude oil to improve oil edibility, storage and do well to downstream neutralizing section.

Neutralizing: Remove Free-Fatty Acids (FFAs) with caustic soda (NaOH). Soap stock is generate in this process.

Decolorizing / Bleaching:  Remove color pigments contained in oil

Deodorizing: Remove disagreeable flavor and odors that are naturally present or created during processing under high temperatur

Dewaxing (Optional): Oils like sunflower oil or maize germ oil (corn oil) have waxes present in them. At low temperatures these waxes give a hazy appearance to the oil. So, in extremely cold areas, dewaxing should take into accout when processing these oil seeds.

Description


Crude oil refining is an important part of edible oil manufacturing. Oil refining machine can remove mechanical impurities, solute impurities, pigments, moisture, and free fatty acids in grease. Our oil refining machine is suitable to all kinds of oil, eg: rice bran, palm, sunflower, soybean, sesame, rapeseed, peanut, cotton seed, corn germ, walnut, almond, castor seed etc.

According to the raw materials and capacity, we can use batch, continuous, physical and chemical refining design. The product oil can reach first to fourth grade. Guarantee the highest quality and lowest cost.
Flow Chart of Palm Sunflower Soybean Coconut Oil Refining Machine:
Crude Oil→ Filter→ Degumming→ Deacidification→ Decoloring→ Deodorizing→ Dewaxing→ Defeat→ First Grade Oil
Centrifugal classifier
Condenser
Hydration tank
Deodorizing tank
Dewaxing
Fatty acids catcher
The main Production introduction of Crude Cooking Oil Refining Machine
1. Decoloring tank: bleach pigments from oil.
2. Deodorizing tank: remove the un-favored smell from decolorized oil.
3. Oil furnace: provide enough heat for the refining sections which need high temperature of 280℃.
4. Vacuum pump: provide high pressure for bleaching, deodorization which can reach 755mmHg or more.
5. Air compressor: dry the bleached clay after bleaching.
6. Filter press: filter the clay into the bleached oil.
7. Steam generator: generate steam distillation.
Specification
Small Scale Mini Palm Oil Refining Machinery Oil Refine Machine
Machine Type
Cooking oil refining machine
Automatic Grade
Automatic
Production Capacity
1-1000TPD
Voltage
220V/380V/440V
Crude Oil type
Soybean oil, Sesame oil, sunflower seed oil, Almond Oil, walnut oil, Peanut Oil, Coconut Oil, Palm Oil
Machine Material
Stainless Steel Oil Refining Machine
