small milk yogurt making machine,mini milk machine

small milk yogurt production line

Process:

Raw milk → Filtration → Preheating → Homogenization → Stirring sterilization → Fermentation → Refrigeration → Filling.


Matching equipment:

Raw milk → Pump → Filter → Pump → Preheat tank → Pump → Homogenizer → Pump → Whisk tank → Pump → Fermenter →Pump → Refrigeration tank → CIP cleaning system.

Description

Capacity:

Pasteurized milk: 50-150L per hour.

Yogurt: 300-1000L per day.

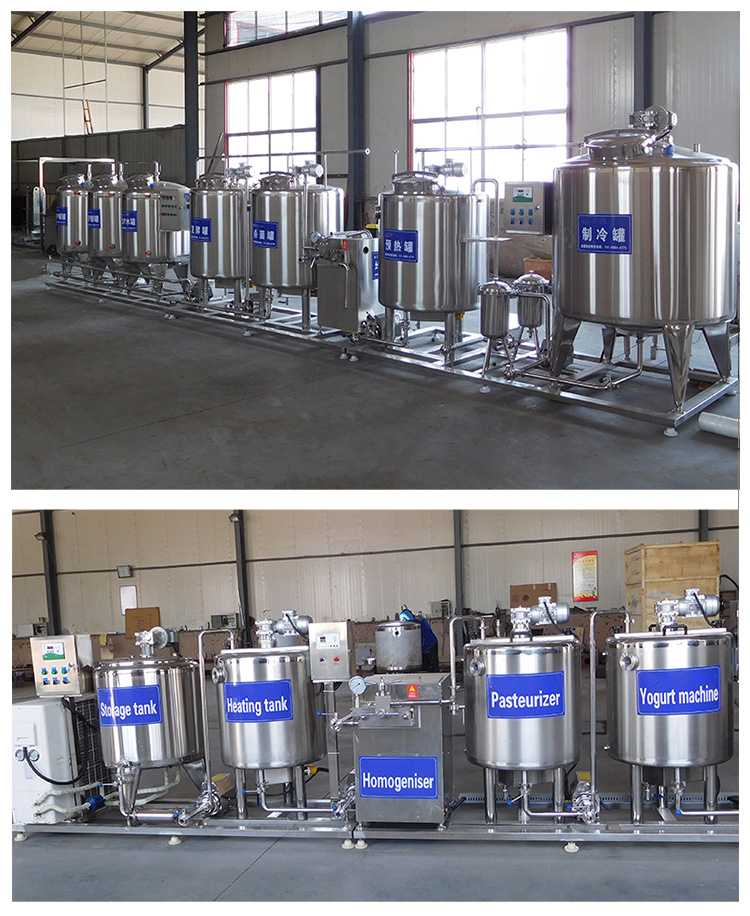

small milk line_副本.jpg

Details Show

Cooling Tank

Material: SUS304 Power supply: 380v/50Hz Total power: 2Kw Cooling capacity: 5000 kcal/hour Installation size: 1700*1100*1950mm Thermal insulation performance: ≤1℃/3H Compressor:2P Motor power/quantity: 0.75kw/1

Duplex filter

Filtering capacity: 5t/h Applicable temperature: ≤120℃ Filter aperture: 200 mesh Working pressure: ≤0.2MPa Filter material: 304 stainless steel Filtration accuracy: 200 (mesh/in)

Preheating tank

Material: SUS304 Power supply: 380v 50Hz Power: 9kw Installation size: 1020*870*1530mm Power of stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure

Homogenizer

Output: 200L/H Maximum pressure: 25Mpa Motor power: 4kw Dimensions: 990*600*850mm Whole machine weight: 600kg Pump body material: 1Cr18Ni9Ti Plunger material: 9Cr18 Plunger diameter and frequency: 20mm, about 210 times/min

Pasteurizer

Filtering capacity: 5t/h Applicable temperature: ≤120℃ Filter aperture: 200 mesh Working pressure: ≤0.2MPa Filter material: 304 stainless steel Filtration accuracy: 200 (mesh/in)

Fermenter

Material: SUS304 Power supply: 380v 50Hz Power: 9kw Installation size: 1400*1400*1950mm Stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure

Filling Machine

Material: SUS304 Working method: continuous work Filling method: automatic filling Equipment size: 1300*1300*1750mm

Air Compressor

Power: 7.5kw Wooden box size:1240*500*1060mm

Acid/Alkali/Water Tank

Water tank capacity: 500L Alkali tank capacity: 500L Acid tank capacity: 500L Pump power: 1.5kw Equipment weight: 500kg Dimensions: 4000*900*2300mm
Factory Real Shot
