ultrasonic herb extraction machine,herbs solvent extractor
  • ultrasonic herb extraction machine,herbs solvent extractor
  • ultrasonic herb extraction machine,herbs solvent extractor

ultrasonic herb extraction & concentration machine

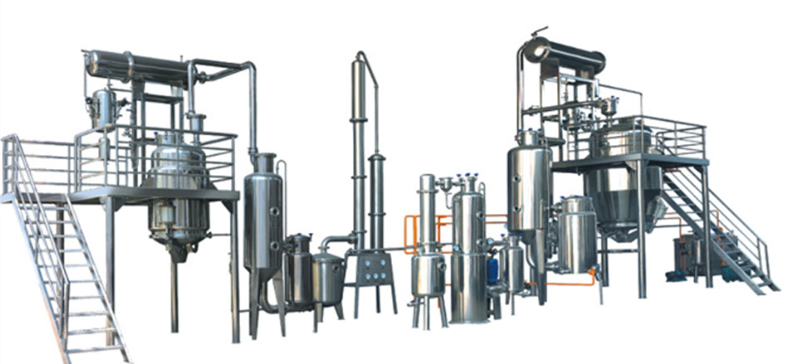

This Extraction Equipment Line suits for extraction of herbal material, such as rose oil, zedoary turmeric oil, star anise oil, litseacubeba oil, patchouli oil, peppermint oil, lavender oil,  herbal extarction, and beverage extraction. It is easy for operating and with high oil extraction rate. It meets for GMP standard.

Description

herb extraction & concentration machine

It can be customzed as customer request.


To watch more videos about this machine, please check our youtube channel:

https://www.youtube.com/channel/UCs-MbMT4Pu0HseoNwFjWCgQ

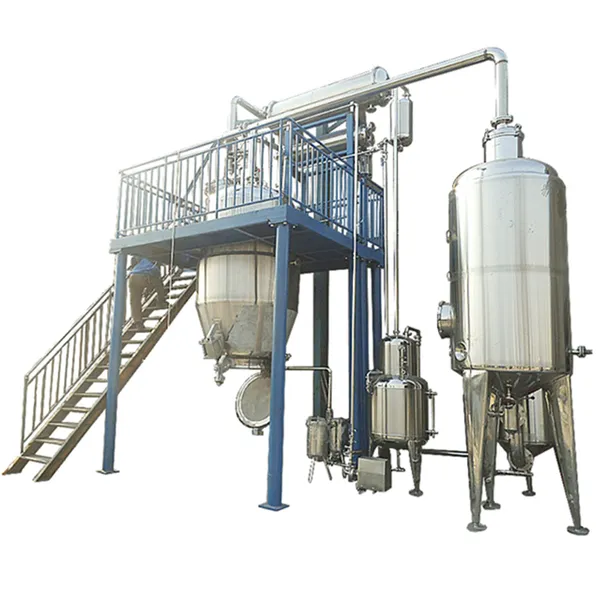

This extraction machine is suitable for extracting effective constituent from roots, stems, flowers, fruits and seeds of plants, or brains, bones and organis of animals, or natural minerals by liquid solvents, such as water, alcohol, acetone and so on.

Composition

This extraction machine include condense r, cooler,water-oil separator, filter, foam destroyer fitting.





Model
LTN6/1500
The volume of extracting (m³)
6
Raw Material Input Capacity (kg)
600-800
Capacity of Concentrating Evaporator
1500 kg/hour
Water Circulation Capacity
20-30T
The time of extraction (h)
8
Concentrate density (%)
1.2-1.35
The work temperature of extracting and concentrating (°C)
Water: 50-90°C Alcohol: 40-80°C
temperature can be customized from -40°C to -70°C
Power of Vacuum Pump
12kw



Model
LTN-0.1/25
LTN-0.2/50
LTN-0.3/75
LTN-0.5/125
LTN-1/250
LTN-2/500
LTN-3/750
LTN-4/1000
LTN-5/1250
The volume of extracting (m³)
0.1
0.2
0.3
0.5
1
2
3
4
5
Raw Material Input Capacity (kg)
10-15
20-30
30-45
50-70
100-150
200-300
300-450
400-600
500-700
Capacity of Concentrating Evaporator
25 kg/hour
50 kg/hour
75 kg/hour
125 kg/hour
250kg/hour
500kg/hour
750kg/hour
1000 kg/hour
1250 kg/hour
Water Circulation Capacity
10-15T
10-15T
10-15T
10-15T
15-20T
15-20T
15-25T
15-25T
20-30T
The time of extraction (h)
6-8
6-8
6-8
6-8
8
8
8
8
8
Concentrate density (%)
1.2-1.35
The work temperature of extracting and concentrating (°C)
Water: 50-90°C Alcohol: 40-80°C
temperature can be customized from -40°C to -70°C
Power of Vacuum Pump
3kw
4KW
4.5KW
5KW
6.5kw
8KW
9kw
10kw
11kw


To watch more videos about this machine, please check our youtube channel:

https://www.youtube.com/channel/UCs-MbMT4Pu0HseoNwFjWCgQ
