liquid juice milk bottle packing machine,bottle filling machine

liquid juice milk bottle packing machine

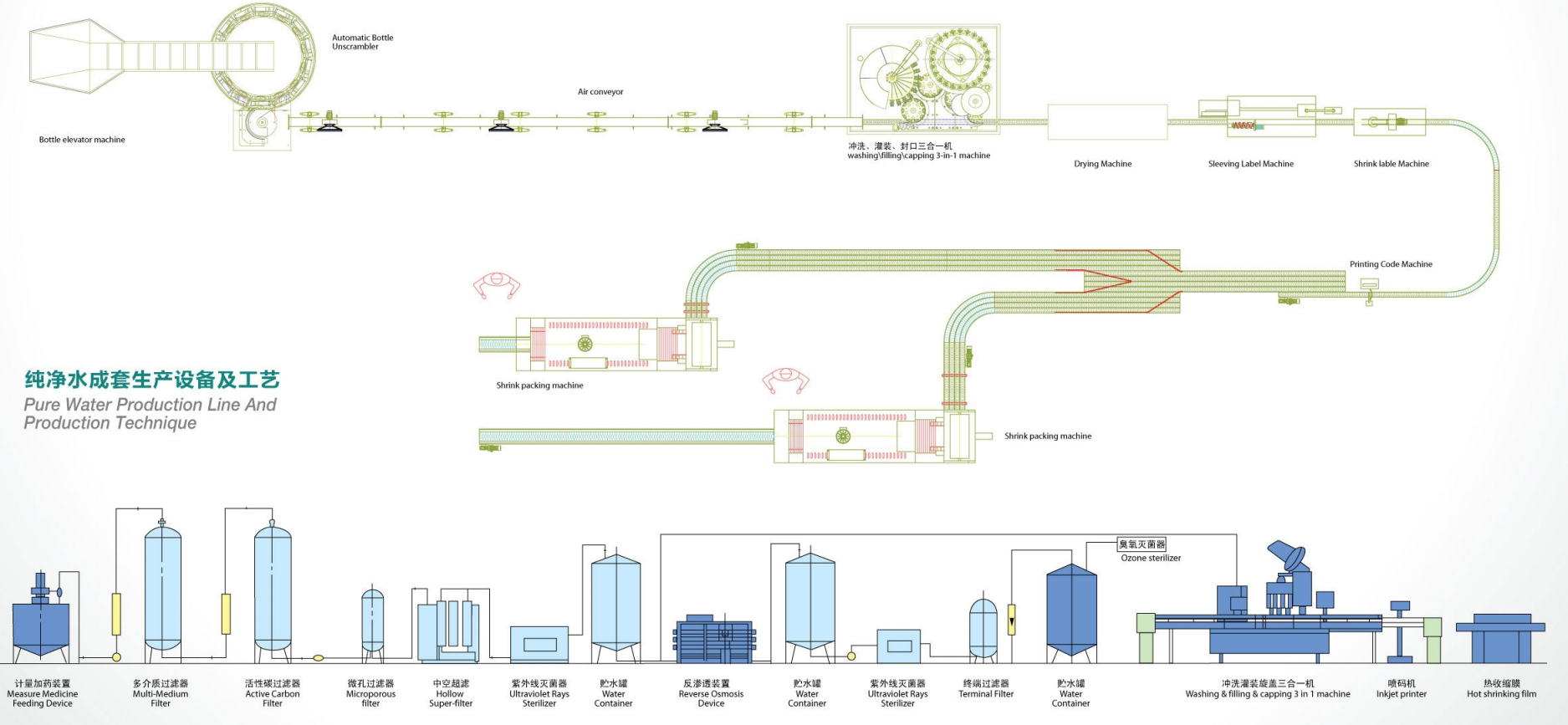

Process of juice beverage production and filling line Raw water → raw water tank → booster pump → activated carbon filter → ion softener → precision filter → reverse osmosis unit → ultraviolet sterilizer → pure water tank → pure water pump → automatic filling line → high-speed shear tank → high-temperature pump → sugar → high-temperature pump → syrup filter → blending tank Tank → vacuum degassing machine → temporary storage tank → ultra-high temperature instantaneous sterilization → fully closed heat preservation tank → hot filling and blowing machine → automatic bottle machine → three-in-one machine → lamp detector → inverted bottle sterilizer → spray cooler → automatic set of standard shrinker, strong dryer → inkjet printer →PE film packing machine (packing machine)

Description

liquid juice milk bottle packing machine

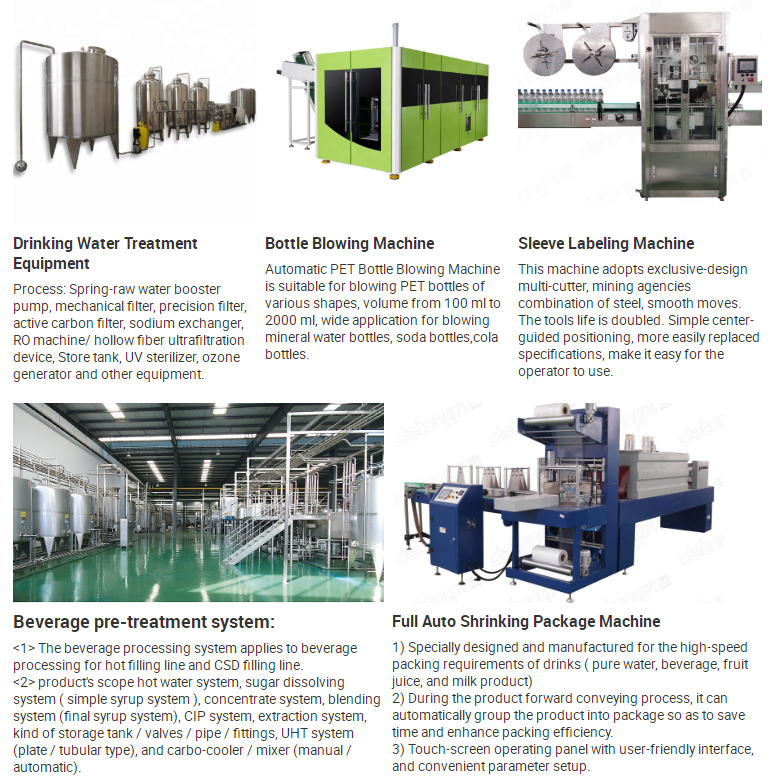

Complete Glass Plastic Bottle Juice Filling Line
1.  Gottle washing filling capping three in one mahine
2.Cap elevator
3.Spray sterilization
4.Blow dryer
5.Label sticker machine
6.Shrink packing machine
The machine is for washing bottle ,filling juice into  bottle ,And the caps is Triple screw cap.
1.washing filling
capping three in one
2.full automatic
3.stainless steel
4.separated control cabinet (touch screen,PLC) ,easy operate and
maintaince
5.CE,SGS,ISO9001
6.high capacity,low power consumption

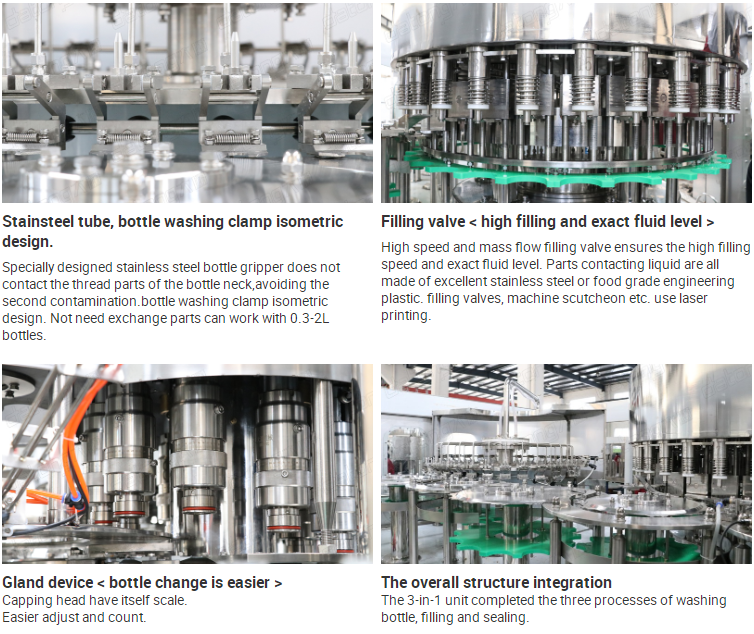

This juice glass bottle filling and capping machine adopts advanced Programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
Paramter (GXGF)
Model
14/12/5
16/16/5
18/18/6
24/24/8
32/32/8
40/40/10
50/50/12
Wash heads
14
16
18
24
32
40
50
Filling heads
12
16
18
24
32
40
50
Capp heads
5
5
6
8
8
10
12
Capacity
(b/h)
4000
7000
8000
10000
14000
18000
22000
Main power(kw)
1.5
2.2
2.2
3
3
7.5
7.5
